Panasonic Electronic Components

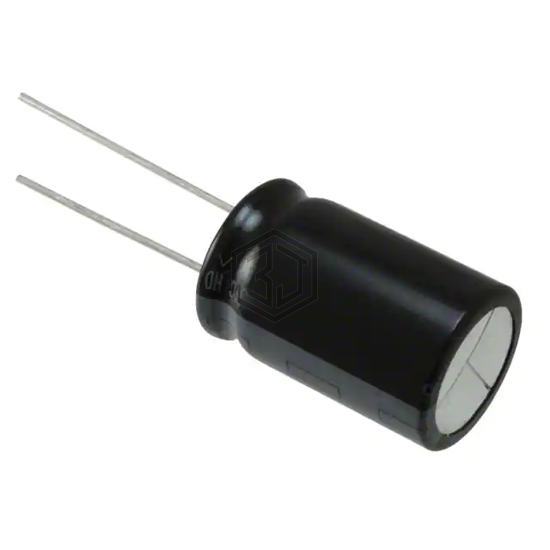

CAP ALUM 680UF 20% 50V RADIAL
EEU-HD1H681S is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 680UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 6,233
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 650 mA @ 120 Hz |
| Ripple Current @ High Frequency | 975 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 50WXA680MEFCGC16X16 | Rubycon | CAP ALUM 680UF 20% 50V RADIAL | 95% | View |
| EJ1J681MNN1240 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 88% | View |
| B41890A4687M | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 16V RADIAL | 71% | View |
| B41896D6687M | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 50V RADIAL | 70% | View |
| ELZA350ELL681MJ20S | United Chemi-Con | CAP ALUM 680UF 20% 35V RADIAL | 69% | View |
| MAL213634681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 10V RADIAL | 68% | View |
Submit your RFQ for EEU-HD1H681S and get a quote within 24 hours.
