CAP ALUM 560UF 20% 200V SNAP

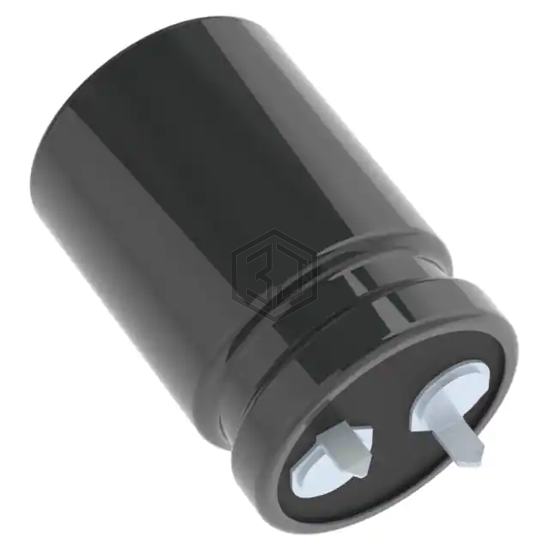

KMQ200VS561M22X30T2 is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 560UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 3,658
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | 444mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.67 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.505 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
KMQ200VS561M22X30T2 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGU2D561MELZ | Nichicon | CAP ALUM 560UF 20% 200V SNAP | 100% | View |
| 100ZLH560MEFCGC18X31.5 | Rubycon | CAP ALUM 560UF 20% 100V RADIAL | 74% | View |
| 80ZLJ560M16X31.5 | Rubycon | CAP ALUM 560UF 20% 80V RADIAL | 67% | View |
| 100ZL560MEFC18X35.5 | Rubycon | CAP ALUM 560UF 20% 100V RADIAL | 65% | View |
| EKMH401VSN561MA45M | United Chemi-Con | CAP ALUM 560UF 20% 400V SNAP | 56% | View |
| 35YXG560MEFC10X23 | Rubycon | CAP ALUM 560UF 20% 35V RADIAL | 54% | View |
Submit your RFQ for KMQ200VS561M22X30T2 and get a quote within 24 hours.
