CAP ALUM 560UF 20% 100V RADIAL

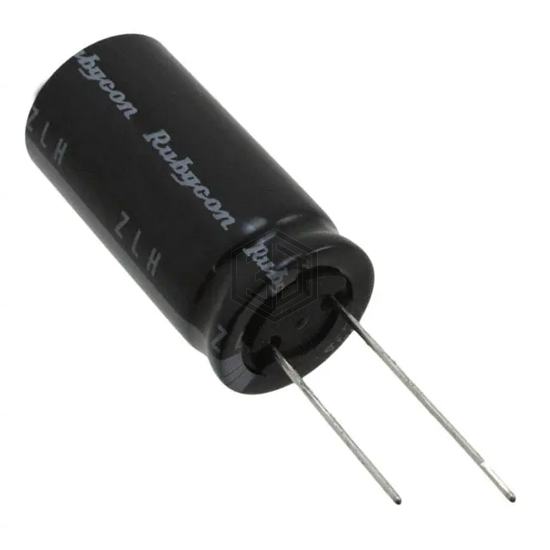

100ZLH560MEFCGC18X31.5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 560UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 3,132
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.359 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.47 A @ 100 kHz |
| Impedance | 27 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.319" (33.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 100ZL560MEFC18X35.5 | Rubycon | CAP ALUM 560UF 20% 100V RADIAL | 91% | View |
| 80ZLJ560M16X31.5 | Rubycon | CAP ALUM 560UF 20% 80V RADIAL | 88% | View |
| LGU2D561MELZ | Nichicon | CAP ALUM 560UF 20% 200V SNAP | 74% | View |
| EKZE350EMC561MJ25S | United Chemi-Con | CAP ALUM 560UF 20% 35V RADIAL | 72% | View |
| UPA1V561MPD1TD | Nichicon | CAP ALUM 560UF 20% 35V RADIAL | 64% | View |
| UPA1V561MPD | Nichicon | CAP ALUM 560UF 20% 35V RADIAL | 64% | View |
Submit your RFQ for 100ZLH560MEFCGC18X31.5 and get a quote within 24 hours.
