CAP ALUM 6800UF 20% 16V RADIAL

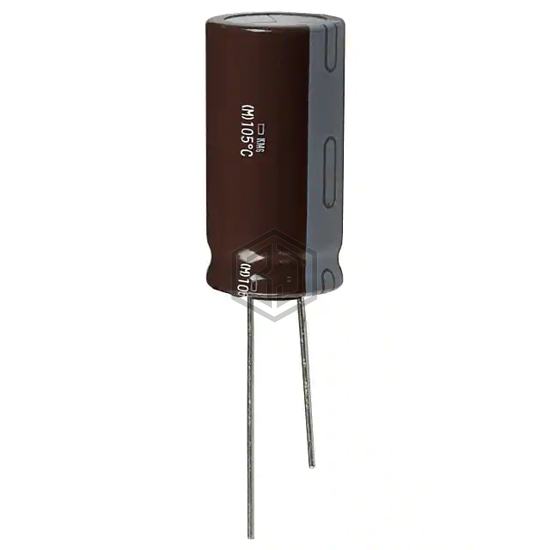

KMG16VB682M16X31LL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 6800UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 3,795
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 73mOhm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.78 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.9224 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.240" (31.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
KMG16VB682M16X31LL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| URZ1C682MHD | Nichicon | CAP ALUM 6800UF 20% 16V RADIAL | 95% | View |
| EEU-FK1C682SB | Panasonic Electronic Components | CAP ALUM 6800UF 20% 16V RAD TH | 85% | View |
| EKMQ100ELL682ML25S | United Chemi-Con | CAP ALUM 6800UF 20% 10V RADIAL | 80% | View |
| ELXY100ELL682ML35S | United Chemi-Con | CAP ALUM 6800UF 20% 10V RADIAL | 74% | View |
| RXK682M1ABK-1632S | Surge | CAP ALUM 10V POLAR | 73% | View |
| ELXZ6R3ELL682ML25S | United Chemi-Con | CAP ALUM 6800UF 20% 6.3V RADIAL | 67% | View |
Submit your RFQ for KMG16VB682M16X31LL and get a quote within 24 hours.
