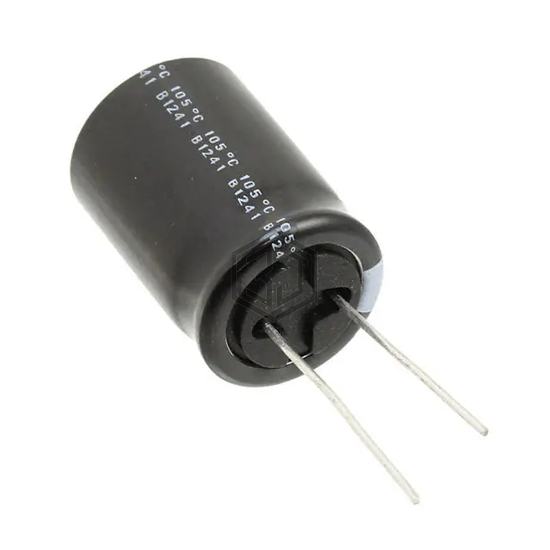

CAP ALUM 6800UF 20% 16V RADIAL
URZ1C682MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 6800UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 5,041
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.56 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.794 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| KMG16VB682M16X31LL | United Chemi-Con | CAP ALUM 6800UF 20% 16V RADIAL | 95% | View |
| EKMQ100ELL682ML25S | United Chemi-Con | CAP ALUM 6800UF 20% 10V RADIAL | 84% | View |
| EEU-FK1C682SB | Panasonic Electronic Components | CAP ALUM 6800UF 20% 16V RAD TH | 80% | View |
| UVZ0J682MHD1TO | Nichicon | CAP ALUM 6800UF 20% 6.3V RADIAL | 72% | View |
| ELXY100ELL682ML35S | United Chemi-Con | CAP ALUM 6800UF 20% 10V RADIAL | 69% | View |
| ELXZ6R3ELL682ML25S | United Chemi-Con | CAP ALUM 6800UF 20% 6.3V RADIAL | 62% | View |
Submit your RFQ for URZ1C682MHD and get a quote within 24 hours.
