CAP ALUM 15000UF 20% 80V SNAP

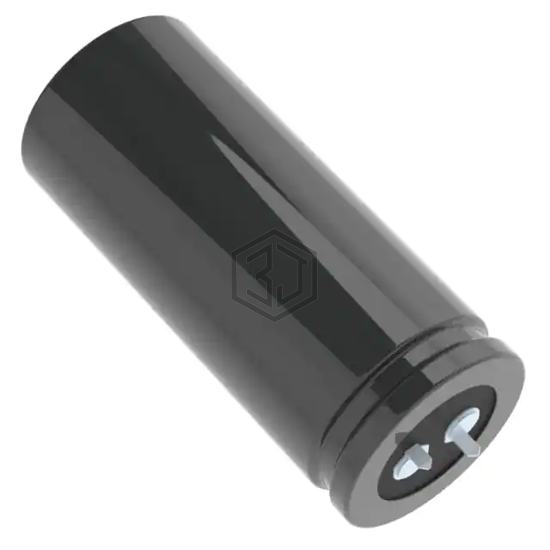

ESMH800VSN153MA80T is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 15000UF 20% 80V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 80 V, package / case Radial, Can - Snap-In.
In Stock: 8,532
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 15000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | 17mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 9.04 A @ 120 Hz |
| Ripple Current @ High Frequency | 10.848 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 3.228" (82.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ESMH800VSN153MA80T is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LKG1J153MKNF | Nichicon | CAP ALUM 15000UF 20% 63V SOLDER | 75% | View |
| ESMH500VNN153MA45U | United Chemi-Con | CAP ALUM 15000UF 20% 50V SNAP | 67% | View |
| ESMH500VNN153MA45S | United Chemi-Con | CAP ALUM 15000UF 20% 50V SNAP | 67% | View |
| A751101 | EXXELIA Sic Safco | CAP ALUM 15000F 20%50V RECTANGUL | 61% | View |
| VHT1500M100 | NTE Electronics, Inc | CAP ALUM 15000UF 20% 10V RADIAL | 56% | View |
| SLP153M050H9P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 15000UF 20% 50V SNAP | 56% | View |
Submit your RFQ for ESMH800VSN153MA80T and get a quote within 24 hours.
