CAP ALUM 15000UF 20% 63V SOLDER

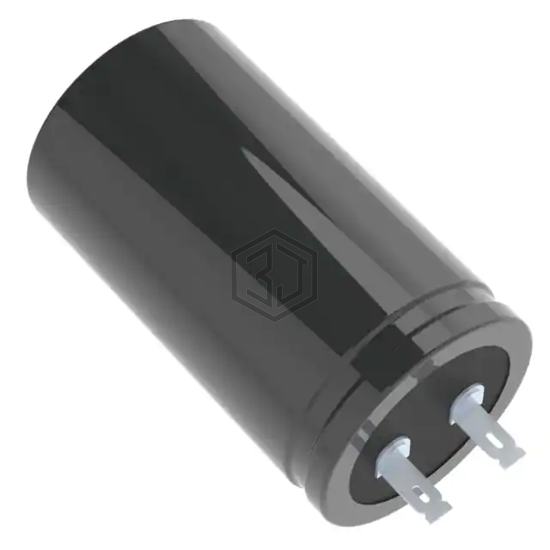

LKG1J153MKNF is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 15000UF 20% 63V SOLDER. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 63 V, package / case Radial, Can - Solder Lug.
In Stock: 5,574
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 15000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 5.6 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.551" (14.00mm) |
| Size / Dimension | 1.575" Dia (40.00mm) |
| Height - Seated (Max) | 2.795" (71.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Solder Lug |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ESMH500VNN153MA45S | United Chemi-Con | CAP ALUM 15000UF 20% 50V SNAP | 86% | View |
| MAL205677153E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 15000UF 20% 40V SNAP | 71% | View |
| MAL205626153E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 15000UF 20% 25V SNAP | 60% | View |
| LGY1V153MELC35 | Nichicon | CAP ALUM 15000UF 20% 35V SNAP | 58% | View |
| VHT1500M100 | NTE Electronics, Inc | CAP ALUM 15000UF 20% 10V RADIAL | 56% | View |
| ESMH160VSN153MQ30U | United Chemi-Con | CAP ALUM 15000UF 20% 16V SNAP | 56% | View |
