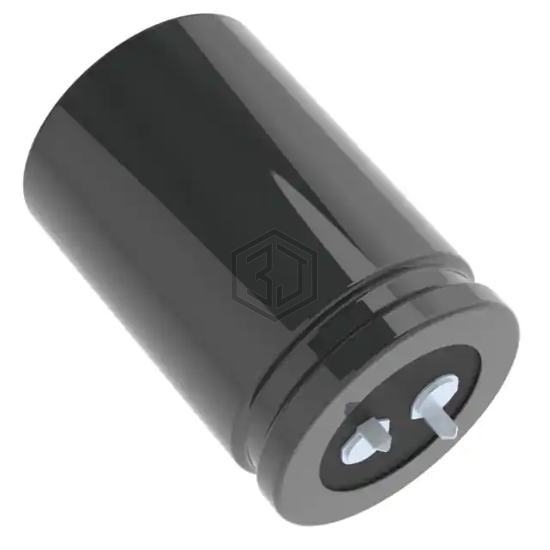

CAP ALUM 10000UF 20% 80V SNAP
ESMH800VSN103MA50T is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 10000UF 20% 80V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 80 V, package / case Radial, Can - Snap-In.
In Stock: 8,974
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | 25mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 6.63 A @ 120 Hz |
| Ripple Current @ High Frequency | 7.956 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ESMH800VSN103MA50T is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ESMH630VNN103MA40U | United Chemi-Con | CAP ALUM 10000UF 20% 63V SNAP | 84% | View |
| ESMH630VNN103MR50U | United Chemi-Con | CAP ALUM 10000UF 20% 63V SNAP | 84% | View |
| MAL215618103E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10000UF 20% 63V SNAP | 76% | View |
| EKMH500VNN103MA35U | United Chemi-Con | CAP ALUM 10000UF 20% 50V SNAP | 70% | View |
| 860010483029 | Würth Elektronik | CAP ALUM 10000UF 20% 25V RADIAL | 56% | View |
| 109LBA035M2CF | Cornell Dubilier / Illinois Capacitor | CAP ALUM 10000UF 20% 35V SNAP | 51% | View |
Submit your RFQ for ESMH800VSN103MA50T and get a quote within 24 hours.
