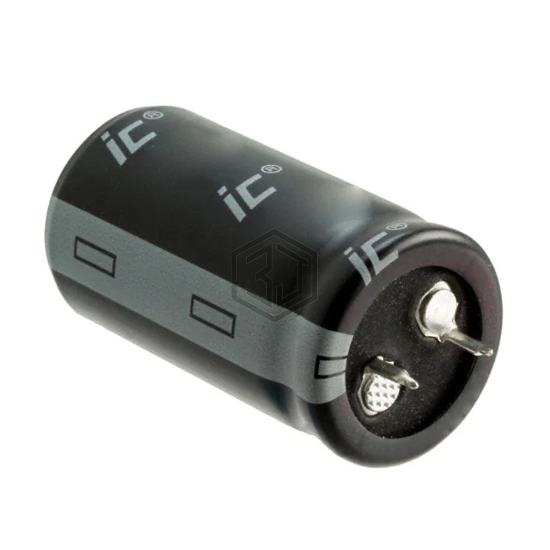

Cornell Dubilier / Illinois Capacitor
CAP ALUM 10000UF 20% 35V SNAP
109LBA035M2CF is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM 10000UF 20% 35V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 35 V, package / case Radial, Can - Snap-In.
In Stock: 6,460
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 66.31mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.65 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.5625 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMH500VSN103MA40T | United Chemi-Con | CAP ALUM 10000UF 20% 50V SNAP | 86% | View |
| EKMH350VSN103MR35U | United Chemi-Con | CAP ALUM 10000UF 20% 35V SNAP | 85% | View |
| EKMH350VSN103MR35T | United Chemi-Con | CAP ALUM 10000UF 20% 35V SNAP | 85% | View |
| SMG25VB103M22DLL | United Chemi-Con | CAP ALUM 10000UF 20% 25V RADIAL | 81% | View |
| EKMH500VNN103MA35U | United Chemi-Con | CAP ALUM 10000UF 20% 50V SNAP | 77% | View |
| ELXZ6R3ELL103MM25S | United Chemi-Con | CAP ALUM 10000UF 20% 6.3V RADIAL | 56% | View |
Submit your RFQ for 109LBA035M2CF and get a quote within 24 hours.
