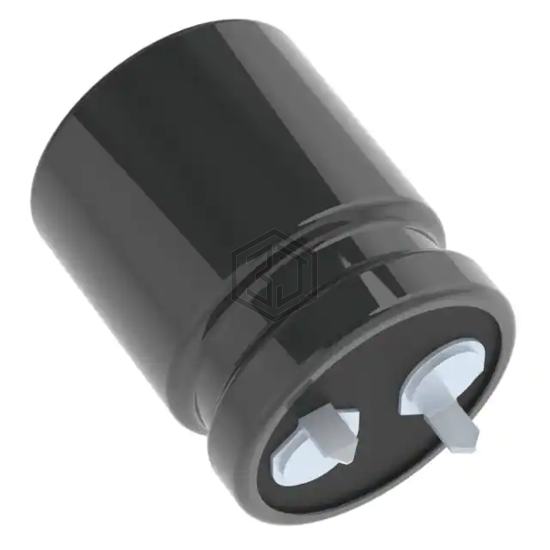

CAP ALUM 1200UF 20% 80V SNAP
ESMH800VNN122MP25T is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 1200UF 20% 80V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 80 V, package / case Radial, Can - Snap-In.
In Stock: 8,400
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | 207mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.69 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.028 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ESMH800VNN122MP25T is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMH101VNN122MQ35U | United Chemi-Con | CAP ALUM 1200UF 20% 100V SNAP | 93% | View |
| LGU2A122MELZ | Nichicon | CAP ALUM 1200UF 20% 100V SNAP | 92% | View |
| 500D128M063LS2A | Vishay Sprague | CAP ALUM 1200UF 20% 63V AXIAL | 85% | View |
| MAL225051122E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1200UF 20% 50V RADIAL | 84% | View |
| MAL225031122E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1200UF 20% 50V RADIAL | 84% | View |
| EKYB630ELL122MLN3S | United Chemi-Con | CAP ALUM 1200UF 20% 63V RADIAL | 82% | View |
Submit your RFQ for ESMH800VNN122MP25T and get a quote within 24 hours.
