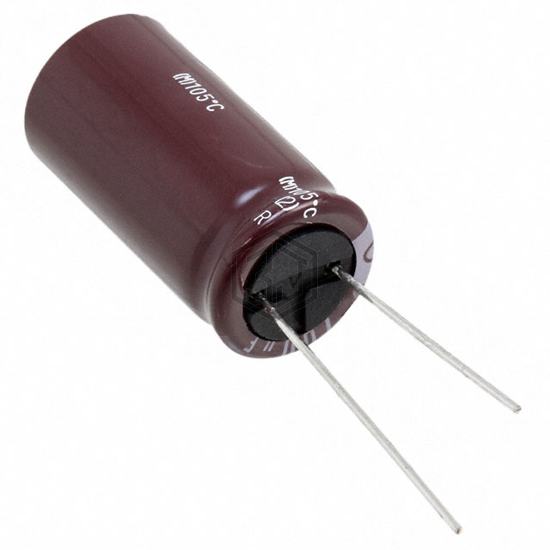

CAP ALUM 1200UF 20% 63V RADIAL
EKYB630ELL122MLN3S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 1200UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 7,755
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.8 A @ 120 Hz |
| Ripple Current @ High Frequency | 3 A @ 100 kHz |
| Impedance | 20 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.299" (33.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL212618122E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1200UF 20% 63V AXIAL | 83% | View |
| MAL225051122E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1200UF 20% 50V RADIAL | 82% | View |
| MAL225031122E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1200UF 20% 50V RADIAL | 82% | View |
| EKMH101VNN122MQ35U | United Chemi-Con | CAP ALUM 1200UF 20% 100V SNAP | 76% | View |
| LGU2A122MELZ | Nichicon | CAP ALUM 1200UF 20% 100V SNAP | 75% | View |
| MAL214660122E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1200UF 20% 35V RADIAL | 61% | View |
