CAP ALUM 2200UF 20% 100V SNAP

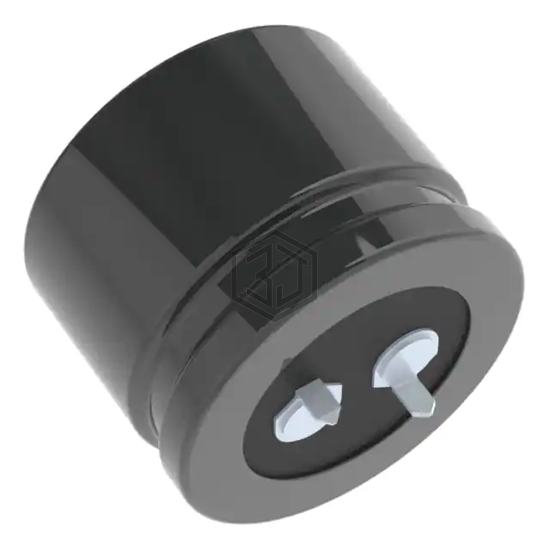

ESMH101VNN222MA25S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 2200UF 20% 100V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 100 V, package / case Radial, Can - Snap-In.
In Stock: 6,072
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 113mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.14 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.768 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LKG1J222MESACK | Nichicon | CAP ALUM 2200UF 20% 63V SNAP | 80% | View |
| LGU2C222MELC | Nichicon | CAP ALUM 2200UF 20% 160V SNAP | 75% | View |
| LLS1J222MELZ | Nichicon | CAP ALUM 2200UF 20% 63V SNAP | 71% | View |
| 25ZL2200MEFCG412.5X35 | Rubycon | CAP ALUM 2200UF 20% 25V RADIAL | 70% | View |
| B43509A2228M000 | EPCOS - TDK Electronics | CAP ALUM 2200UF 20% 200V SNAP | 69% | View |
| LKX2D222MESC50 | Nichicon | CAP ALUM 2200UF 20% 200V SNAP | 69% | View |
