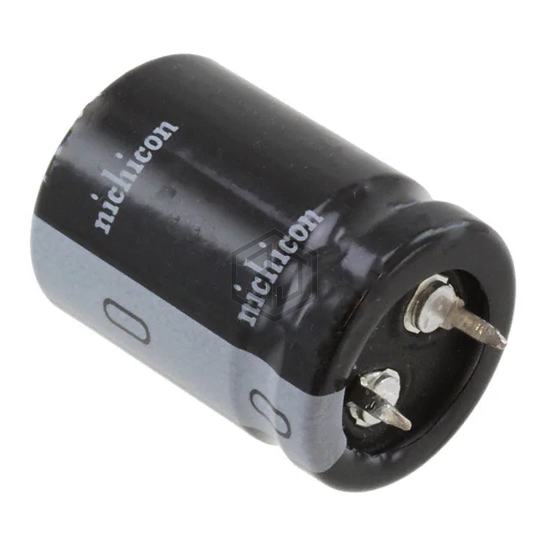

CAP ALUM 2200UF 20% 63V SNAP
LLS1J222MELZ is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2200UF 20% 63V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 63 V, package / case Radial, Can - Snap-In.
In Stock: 6,696
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.35 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.7025 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL202148222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 63V SNAP | 91% | View |
| LKG1J222MESACK | Nichicon | CAP ALUM 2200UF 20% 63V SNAP | 89% | View |
| MAL214851222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 50V RADIAL | 76% | View |
| ESMH101VNN222MA25S | United Chemi-Con | CAP ALUM 2200UF 20% 100V SNAP | 71% | View |
| MAL217255222E3 | Vishay Beyschlag/Draloric/BC Components | 2200UF 16V 12,5X20MM 105C 7000H | 70% | View |
| 515D228M025EK6AE3 | Vishay Sprague | CAP ALUM 2200UF 20% 25V RADIAL | 59% | View |
Submit your RFQ for LLS1J222MELZ and get a quote within 24 hours.
