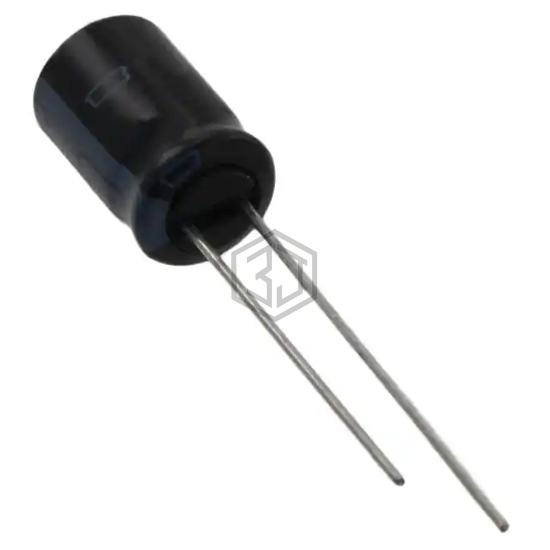

CAP ALUM 22UF 20% 100V RADIAL
ESMG101ELL220MHB5D is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 22UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 2,955
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 130 mA @ 120 Hz |
| Ripple Current @ High Frequency | 234 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UKZ2A220MPM | Nichicon | CAP ALUM 22UF 20% 100V RADIAL | 100% | View |
| UPS2C220MPD1TD | Nichicon | CAP ALUM 22UF 20% 160V RADIAL | 83% | View |
| EEU-FR1H220B | Panasonic Electronic Components | CAP ALUM 22UF 20% 50V RADIAL | 76% | View |
| UKW1J220MDD1TD | Nichicon | CAP ALUM 22UF 20% 63V RADIAL | 76% | View |
| UPS2V220MHD | Nichicon | CAP ALUM 22UF 20% 350V RADIAL | 76% | View |
| PF1H220MNN0511U | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 60% | View |
Submit your RFQ for ESMG101ELL220MHB5D and get a quote within 24 hours.
