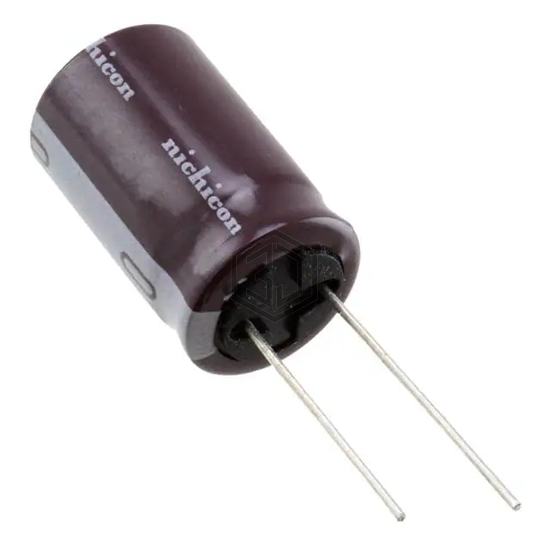

CAP ALUM 22UF 20% 350V RADIAL
UPS2V220MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 350V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 350 V, package / case Radial, Can.
In Stock: 1,872
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 130 mA @ 120 Hz |
| Ripple Current @ High Frequency | 208 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPS2V220MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MALREKB00DE222NG0K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 250V RADIAL | 84% | View |
| EEU-FR1H220B | Panasonic Electronic Components | CAP ALUM 22UF 20% 50V RADIAL | 73% | View |
| EEU-FC1V220 | Panasonic Electronic Components | CAP ALUM 22UF 20% 35V RADIAL | 72% | View |
| PF1H220MNN0511U | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 63% | View |
| EKXJ401ELL220MJ25S | United Chemi-Con | CAP ALUM 22UF 20% 400V RADIAL | 61% | View |
| EKXG351ELL220MK20S | United Chemi-Con | CAP ALUM 22UF 20% 350V RADIAL | 57% | View |
Submit your RFQ for UPS2V220MHD and get a quote within 24 hours.
