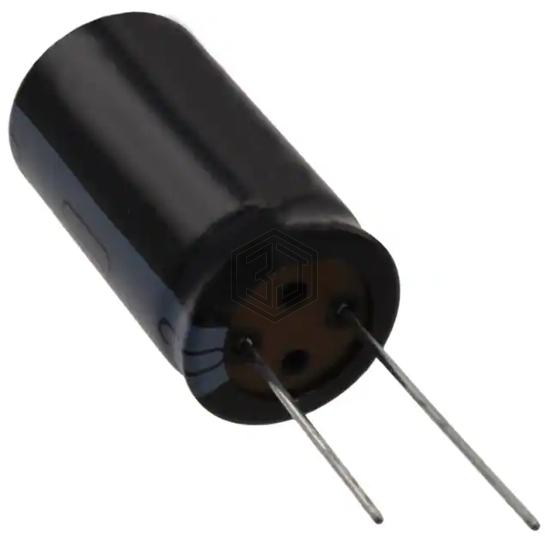

CAP ALUM 22000UF 20% 10V RADIAL
ESMG100ELL223MP40S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 22000UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 5,042
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 22000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.48 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.7584 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
ESMG100ELL223MP40S is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 80D223P010MB2DE3 | Vishay Sprague | CAP ALUM 22000UF 10V SNAP | 100% | View |
| EKMH160VNN223MR35U | United Chemi-Con | CAP ALUM 22000UF 20% 16V SNAP | 83% | View |
| 229LBA016M2EC | Cornell Dubilier / Illinois Capacitor | CAP ALUM 22000UF 20% 16V SNAP | 74% | View |
| LKG1E223MESBAK | Nichicon | CAP ALUM 22000UF 20% 25V SNAP | 68% | View |
| 229LBB025M2ED | Cornell Dubilier / Illinois Capacitor | CAP ALUM 22000UF 20% 25V SNAP | 62% | View |
| MAL205657223E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22000UF 20% 40V SNAP | 61% | View |
Submit your RFQ for ESMG100ELL223MP40S and get a quote within 24 hours.
