CAP ALUM 22000UF 20% 25V SNAP

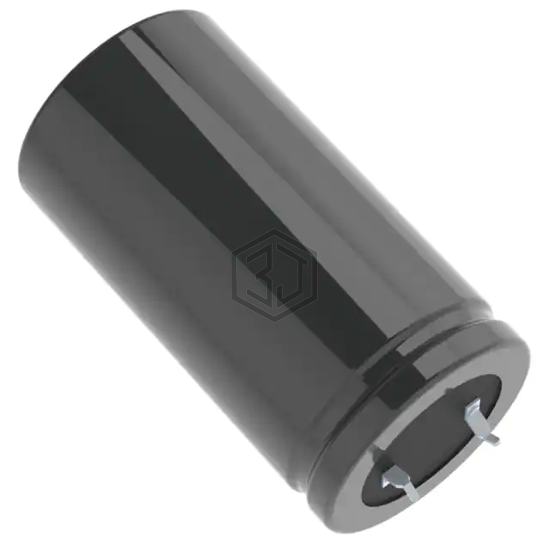

LKG1E223MESBAK is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22000UF 20% 25V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can - Snap-In.
In Stock: 4,650
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 3.85 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 229LBB025M2ED | Cornell Dubilier / Illinois Capacitor | CAP ALUM 22000UF 20% 25V SNAP | 94% | View |
| 35MXG22000MEFCSN35X40 | Rubycon | CAP ALUM 22000UF 20% 35V SNAP | 78% | View |
| LGY1C223MELA45 | Nichicon | CAP ALUM 22000UF 20% 16V SNAP | 77% | View |
| EKMH160VNN223MR35U | United Chemi-Con | CAP ALUM 22000UF 20% 16V SNAP | 76% | View |
| MAL205657223E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22000UF 20% 40V SNAP | 73% | View |
| 35USC22000MEFCSN30X45 | Rubycon | CAP ALUM 22000UF 20% 35V SNAP | 70% | View |
Submit your RFQ for LKG1E223MESBAK and get a quote within 24 hours.
