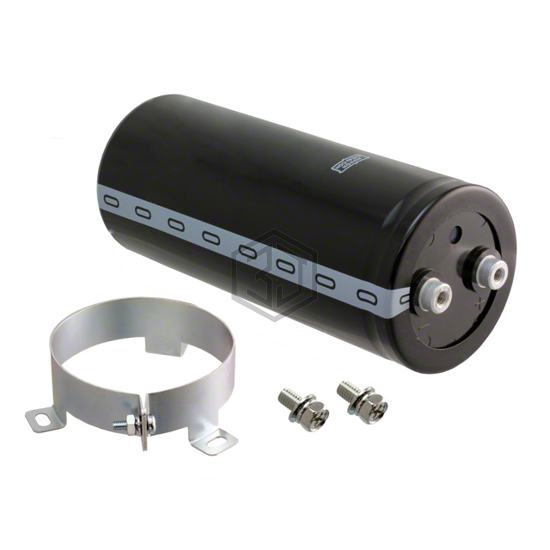

CAP ALUM 1500UF 20% 650V SCREW
ERHA651LGC152MDD0M is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 1500UF 20% 650V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 85°C, voltage - rated 650 V, package / case Radial, Can - Screw Terminals.
In Stock: 8,826
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 650 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 8.6 A @ 120 Hz |
| Ripple Current @ High Frequency | 12.04 A @ 3 kHz |
| Impedance | - |
| Lead Spacing | 1.102" (28.00mm) |
| Size / Dimension | 2.500" Dia (63.50mm) |
| Height - Seated (Max) | 5.118" (130.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
ERHA651LGC152MDD0M is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43713A6158M000 | EPCOS - TDK Electronics | CAP ALUM 1500UF 20% 500V SCREW | 83% | View |
| LNT2V152MSEFBN | Nichicon | CAP ALUM 1500UF 20% 350V SCREW | 81% | View |
| LNC2W152MTEF | Nichicon | CAP ALUM 1500UF 20% 450V SCREW | 80% | View |
| MLS152M060EK0A | Cornell Dubilier Electronics (CDE) | CAP ALUM 1500UF 20% 60V FLATPACK | 75% | View |
| LNC2G152MSEFBN | Nichicon | CAP ALUM 1500UF 20% 400V SCREW | 74% | View |
| MAL210486152E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 400V SCREW | 73% | View |
Submit your RFQ for ERHA651LGC152MDD0M and get a quote within 24 hours.
