Cornell Dubilier Electronics (CDE)

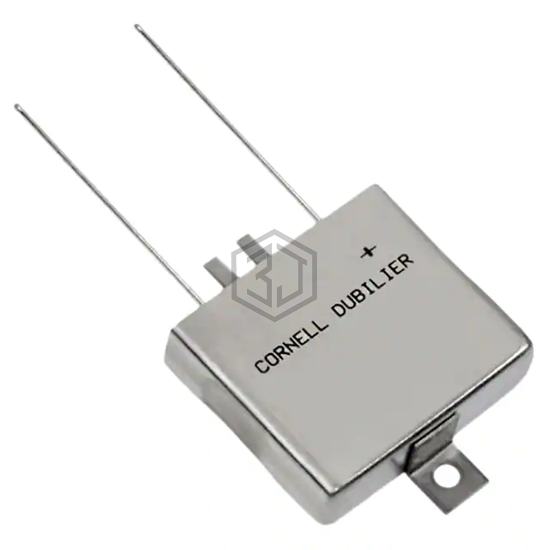

CAP ALUM 1500UF 20% 60V FLATPACK
MLS152M060EK0A is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 1500UF 20% 60V FLATPACK. Key specifications: mounting type Chassis Mount, operating temperature -55°C ~ 125°C, voltage - rated 60 V, package / case FlatPack, Tabbed.
In Stock: 10
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 60 V |
| ESR (Equivalent Series Resistance) | 106mOhm @ 120Hz |
| Lifetime @ Temp. | 10000 Hrs @ 85°C |
| Operating Temperature | -55°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 9.8 A @ 120 Hz |
| Ripple Current @ High Frequency | 11.5 A @ 20 kHz |
| Impedance | - |
| Lead Spacing | 1.000" (25.40mm) |
| Size / Dimension | 1.500" L x 1.750" W (38.10mm x 44.45mm) |
| Height - Seated (Max) | 0.500" (12.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | FlatPack, Tabbed |
Submit your RFQ for MLS152M060EK0A and get a quote within 24 hours.
