CAP ALUM 2200UF 20% 600V SCREW

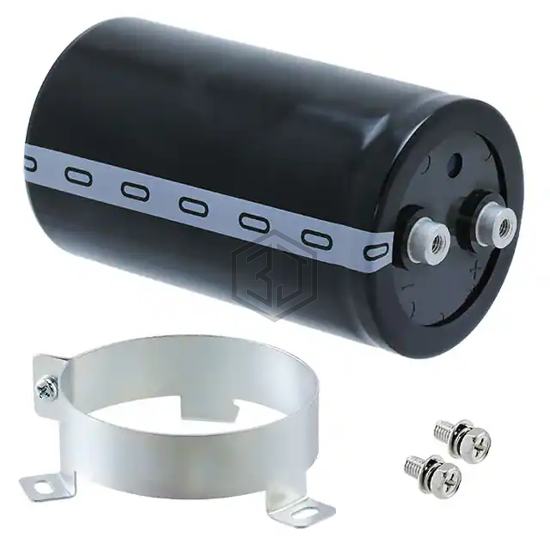

ERHA601LGC222MEB0M is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 2200UF 20% 600V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 85°C, voltage - rated 600 V, package / case Radial, Can - Screw Terminals.
In Stock: 9,849
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 600 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 10.8 A @ 120 Hz |
| Ripple Current @ High Frequency | 15.12 A @ 3 kHz |
| Impedance | - |
| Lead Spacing | 1.102" (28.00mm) |
| Size / Dimension | 3.000" Dia (76.20mm) |
| Height - Seated (Max) | 4.331" (110.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
ERHA601LGC222MEB0M is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ERHA601LGC222MDE5U | United Chemi-Con | CAP ALUM 2200UF 20% 600V SCREW | 99% | View |
| MAL210457222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 450V SCREW | 85% | View |
| LNY2G222MSEGBN | Nichicon | CAP ALUM 2200UF 20% 400V SCREW | 84% | View |
| ALS30A222MF400 | KEMET | CAP ALUM 2200UF 20% 400V SCREW | 82% | View |
| E36D451HLN222QEA5U | United Chemi-Con | CAP ALUM 2200UF 450V SCREW | 82% | View |
| B43464A5228M000 | EPCOS - TDK Electronics | CAP ALUM 2200UF 20% 450V SCREW | 79% | View |
