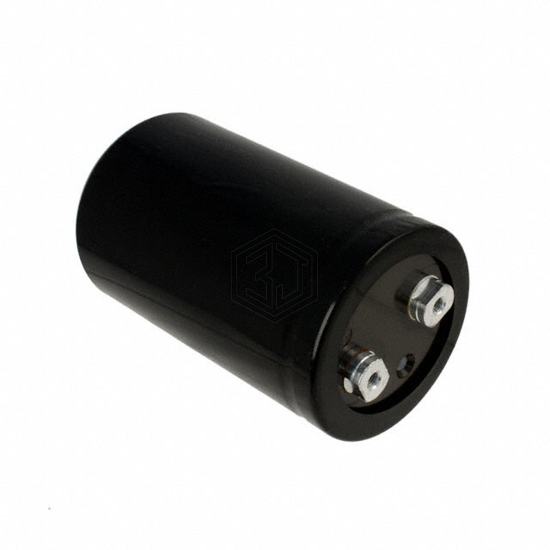

CAP ALUM 2200UF 20% 400V SCREW
ALS30A222MF400 is a Aluminum Electrolytic Capacitors manufactured by KEMET. CAP ALUM 2200UF 20% 400V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 400 V, package / case Radial, Can - Screw Terminals.
In Stock: 2,920
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | 62mOhm @ 100Hz |
| Lifetime @ Temp. | 19000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 11.2 A @ 100 Hz |
| Ripple Current @ High Frequency | 18.8 A @ 10 kHz |
| Impedance | 44 mOhms |
| Lead Spacing | 1.122" (28.50mm) |
| Size / Dimension | 2.598" Dia (66.00mm) |
| Height - Seated (Max) | 4.213" (107.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| E36D451HLN222QEA5U | United Chemi-Con | CAP ALUM 2200UF 450V SCREW | 92% | View |
| E36D351HPN222TDE3U | United Chemi-Con | CAP ALUM 2200UF 350V SCREW | 91% | View |
| LNY2G222MSEGBN | Nichicon | CAP ALUM 2200UF 20% 400V SCREW | 91% | View |
| MAL210225222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 350V SCREW | 88% | View |
| MAL210457222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 450V SCREW | 87% | View |
| B43464A5228M000 | EPCOS - TDK Electronics | CAP ALUM 2200UF 20% 450V SCREW | 82% | View |
Submit your RFQ for ALS30A222MF400 and get a quote within 24 hours.
