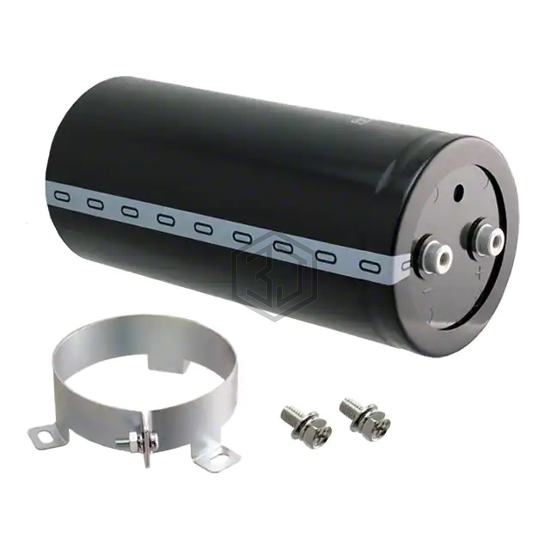

CAP ALUM 3900UF 20% 550V SCREW
ERHA551LGC392MEE0M is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 3900UF 20% 550V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 85°C, voltage - rated 550 V, package / case Radial, Can - Screw Terminals.
In Stock: 8,696
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 3900 µF |
| Tolerance | ±20% |
| Voltage - Rated | 550 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 15.9 A @ 120 Hz |
| Ripple Current @ High Frequency | 22.26 A @ 3 kHz |
| Impedance | - |
| Lead Spacing | 1.240" (31.50mm) |
| Size / Dimension | 3.000" Dia (76.20mm) |
| Height - Seated (Max) | 5.512" (140.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
ERHA551LGC392MEE0M is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LNC2V392MSEHBN | Nichicon | CAP ALUM 3900UF 20% 350V SCREW | 81% | View |
| MAL250136392E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3900UF 20% 400V SCREW | 77% | View |
| LNX2W392MSEHBN | Nichicon | CAP ALUM 3900UF 20% 450V SCREW | 77% | View |
| E36D451HPN392MEA5Q | United Chemi-Con | CAP ALUM 3900UF 20% 450V SCREW | 72% | View |
| E37X401CPN392MDD0U | United Chemi-Con | CAP ALUM 3900UF 20% 400V SCREW | 70% | View |
| B43703B5398M000 | EPCOS - TDK Electronics | CAP ALUM 3900UF 20% 450V SCREW | 64% | View |
Submit your RFQ for ERHA551LGC392MEE0M and get a quote within 24 hours.
