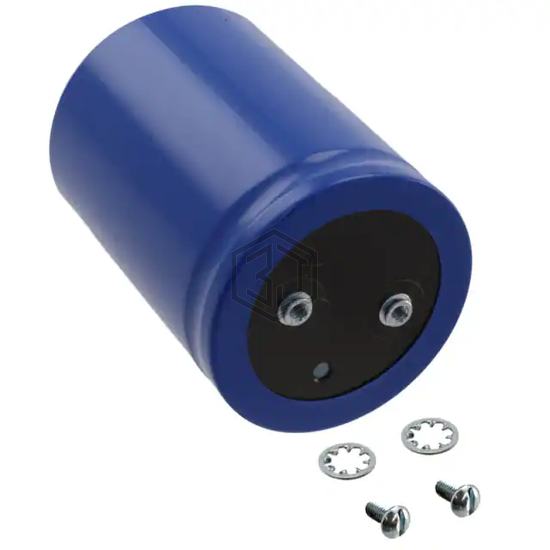

CAP ALUM 3900UF 20% 450V SCREW
E36D451HPN392MEA5Q is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 3900UF 20% 450V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 450 V, package / case Radial, Can - Screw Terminals.
In Stock: 1,126
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3900 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 78.4mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 10.08 A @ 120 Hz |
| Ripple Current @ High Frequency | 14.112 A @ 3 kHz |
| Impedance | - |
| Lead Spacing | 1.250" (31.75mm) |
| Size / Dimension | 3.000" Dia (76.20mm) |
| Height - Seated (Max) | 4.125" (104.78mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL250136392E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3900UF 20% 400V SCREW | 88% | View |
| E33F451CPN392MF92Q | Chemi-Con | SCREW TERMINAL CAPCITOR | 88% | View |
| LNC2V392MSEHBN | Nichicon | CAP ALUM 3900UF 20% 350V SCREW | 76% | View |
| LNC2W392MSEHBB | Nichicon | CAP ALUM 3900UF 20% 450V SCREW | 75% | View |
| B43703B5398M000 | EPCOS - TDK Electronics | CAP ALUM 3900UF 20% 450V SCREW | 66% | View |
| E37X401CPN392MDD0U | United Chemi-Con | CAP ALUM 3900UF 20% 400V SCREW | 64% | View |
Submit your RFQ for E36D451HPN392MEA5Q and get a quote within 24 hours.
