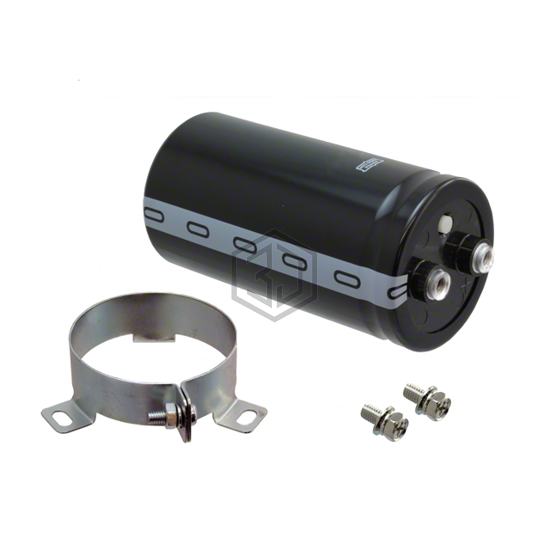

CAP ALUM 1000UF 20% 550V SCREW
ERHA551LGC102MC95M is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 1000UF 20% 550V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 85°C, voltage - rated 550 V, package / case Radial, Can - Screw Terminals.
In Stock: 5,557
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 550 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 5.4 A @ 120 Hz |
| Ripple Current @ High Frequency | 7.56 A @ 3 kHz |
| Impedance | - |
| Lead Spacing | 0.882" (22.40mm) |
| Size / Dimension | 1.969" Dia (50.00mm) |
| Height - Seated (Max) | 3.740" (95.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
ERHA551LGC102MC95M is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL210467102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 450V SCREW | 89% | View |
| LNX2L102MSEFBN | Nichicon | CAP ALUM 1000UF 20% 550V SCREW | 89% | View |
| ERHA651LGC102MDA0U | United Chemi-Con | CAP ALUM 1000UF 20% 650V SCREW | 88% | View |
| ERHB5H1LGC102MD70U | United Chemi-Con | CAP ALUM 1000UF 20% 575V SCREW | 82% | View |
| 550C102T400BJ2B | Cornell Dubilier Electronics (CDE) | CAP ALUM 1000UF 400V SCREW | 80% | View |
| E32D401HLN102MC79U | United Chemi-Con | CAP ALUM 1000UF 20% 400V SCREW | 78% | View |
Submit your RFQ for ERHA551LGC102MC95M and get a quote within 24 hours.
