Cornell Dubilier Electronics (CDE)

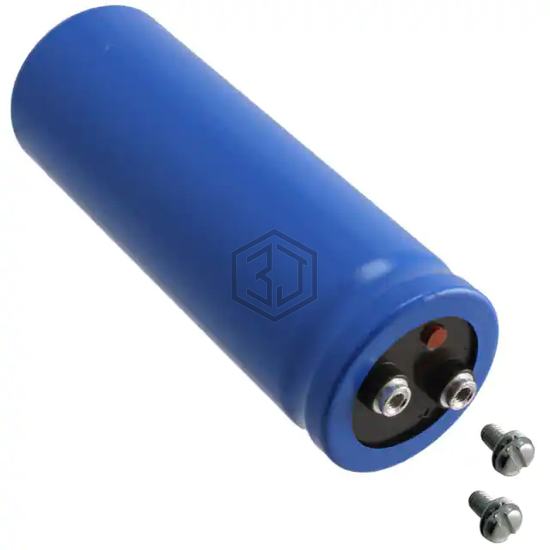

CAP ALUM 1000UF 400V SCREW
550C102T400BJ2B is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 1000UF 400V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - Screw Terminals.
In Stock: 7,374
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | -10%, +50% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | 94.2mOhm |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.875" (22.22mm) |
| Size / Dimension | 2.000" Dia (50.80mm) |
| Height - Seated (Max) | 3.625" (92.08mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| E32D401HLN102MC79U | United Chemi-Con | CAP ALUM 1000UF 20% 400V SCREW | 100% | View |
| E32D401HPN102MAD0U | United Chemi-Con | CAP ALUM 1000UF 20% 400V SCREW | 100% | View |
| MAL210427102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 450V SCREW | 92% | View |
| MAL210467102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 450V SCREW | 92% | View |
| LNU2H102MSEFBN | Nichicon | CAP ALUM 1000UF 20% 500V SCREW | 86% | View |
| MAL210463102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 250V SCREW | 70% | View |
Submit your RFQ for 550C102T400BJ2B and get a quote within 24 hours.
