CAP ALUM 22UF 20% 6.3V SMD

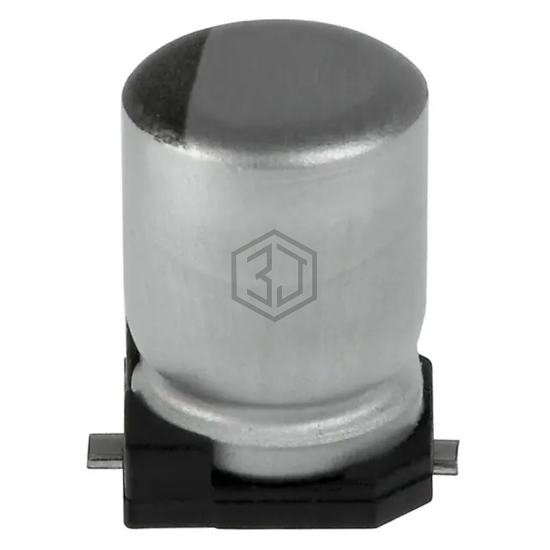

EMZA6R3ADA220MD61G is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 22UF 20% 6.3V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can - SMD.
In Stock: 3,953
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 36 mA @ 120 Hz |
| Ripple Current @ High Frequency | 90 mA @ 100 kHz |
| Impedance | 1.35 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 865060140001 | Würth Elektronik | CAP ALUM 22UF 20% 6.3V SMD | 90% | View |
| EMVY100ADA220ME55G | United Chemi-Con | CAP ALUM 22UF 20% 10V SMD | 82% | View |
| EEE-FK1C220UR | Panasonic Electronic Components | CAP ALUM 22UF 20% 16V SMD | 69% | View |
| AFK226M16B12T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 22UF 20% 16V SMD | 69% | View |
| RSVVS220M1GDC3001U | Elna America | CAP ALUM 22UF 20% 35V SMD | 65% | View |
| 50SGV22M6.3X8 | Rubycon | CAP ALUM 22UF 20% 50V SMD | 61% | View |
Submit your RFQ for EMZA6R3ADA220MD61G and get a quote within 24 hours.
