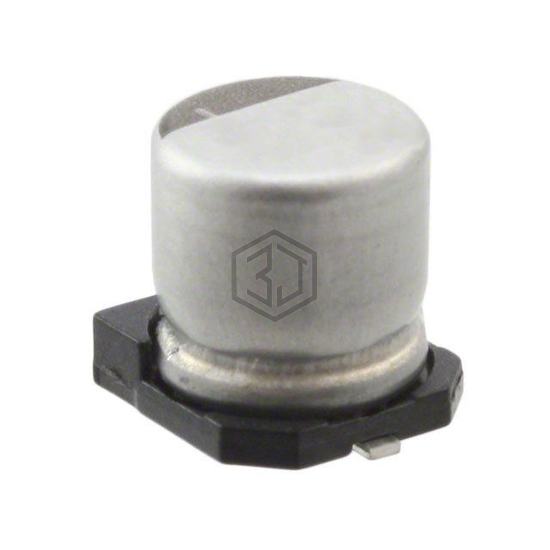

CAP ALUM 22UF 20% 10V SMD
EMVY100ADA220ME55G is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 22UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 3,104
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 38 mA @ 120 Hz |
| Ripple Current @ High Frequency | 95 mA @ 100 kHz |
| Impedance | 1.8 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.205" (5.20mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ATB226M010 | Cornell Dubilier / Illinois Capacitor | CAP ALUM 22UF 20% 10V SMD | 88% | View |
| EMZA6R3ADA220MD61G | United Chemi-Con | CAP ALUM 22UF 20% 6.3V SMD | 82% | View |
| EEE-FN0J220R | Panasonic Electronic Components | CAP ALUM 22UF 20% 6.3V SMD | 74% | View |
| EEE-FK1C220UR | Panasonic Electronic Components | CAP ALUM 22UF 20% 16V SMD | 71% | View |
| UWT1H220MCR6GS | Nichicon | CAP ALUM 22UF 20% 50V SMD | 67% | View |
| 50SGV22M6.3X8 | Rubycon | CAP ALUM 22UF 20% 50V SMD | 64% | View |
Submit your RFQ for EMVY100ADA220ME55G and get a quote within 24 hours.
