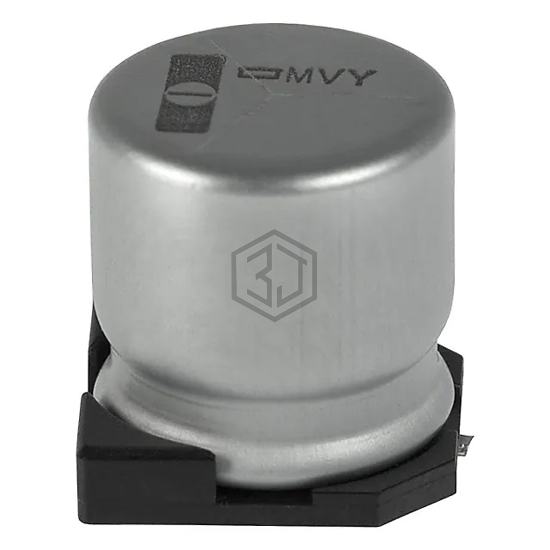

CAP ALUM 220UF 20% 63V SMD
EMVY630ARA221MKE0S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 220UF 20% 63V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can - SMD.
In Stock: 2,842
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 250 mA @ 120 Hz |
| Ripple Current @ High Frequency | 500 mA @ 100 kHz |
| Impedance | 190 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.531" (13.50mm) |
| Surface Mount Land Size | 0.512" L x 0.512" W (13.00mm x 13.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| VEU221M1JTR-1316S | Surge | CAP ALUM 63V POLAR | 91% | View |
| UUH1H221MNQ1ZD | Nichicon | CAP ALUM 220UF 20% 50V SMD | 86% | View |
| MAL214099111E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 50V SMD | 78% | View |
| AFK227M50G24VT-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 220UF 20% 50V SMD | 73% | View |
| UUD1A221MCL1GS | Nichicon | CAP ALUM 220UF 20% 10V SMD | 51% | View |
| EEE-FN1A221UV | Panasonic Electronic Components | CAP ALUM 220UF 20% 10V SMD | 50% | View |
Submit your RFQ for EMVY630ARA221MKE0S and get a quote within 24 hours.
