Cornell Dubilier Electronics (CDE)

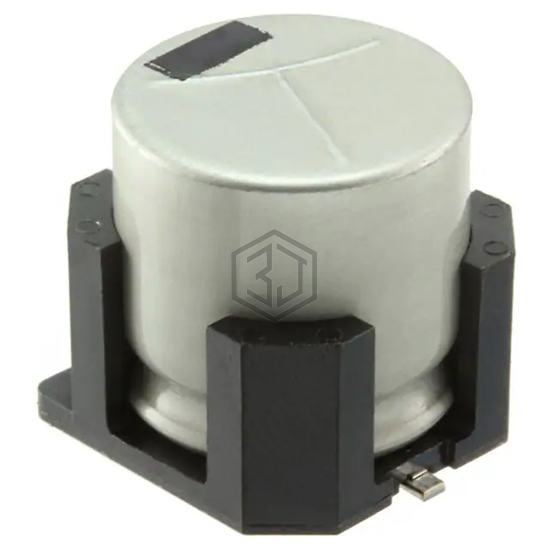

CAP ALUM 220UF 20% 50V SMD
AFK227M50G24VT-F is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 220UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 9,949
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 180mOhm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive, Bypass, Decoupling |
| Ripple Current @ Low Frequency | 502.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 180 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.425" (10.80mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| VEJ221M1JTR-1313S | Surge | CAP ALUM 63V POLAR | 88% | View |
| AEF1213221M063R | KYOCERA AVX | CAP ALUM 63V POLAR | 85% | View |
| 35TZV220M8X10.5 | Rubycon | CAP ALUM 220UF 20% 35V SMD | 77% | View |
| UUH1H221MNQ1ZD | Nichicon | CAP ALUM 220UF 20% 50V SMD | 77% | View |
| UWG1V221MNL1GS | Nichicon | CAP ALUM 220UF 20% 35V SMD | 74% | View |
| EMVY630ARA221MKE0S | United Chemi-Con | CAP ALUM 220UF 20% 63V SMD | 73% | View |
Submit your RFQ for AFK227M50G24VT-F and get a quote within 24 hours.
