CAP ALUM 47UF 20% 50V SMD

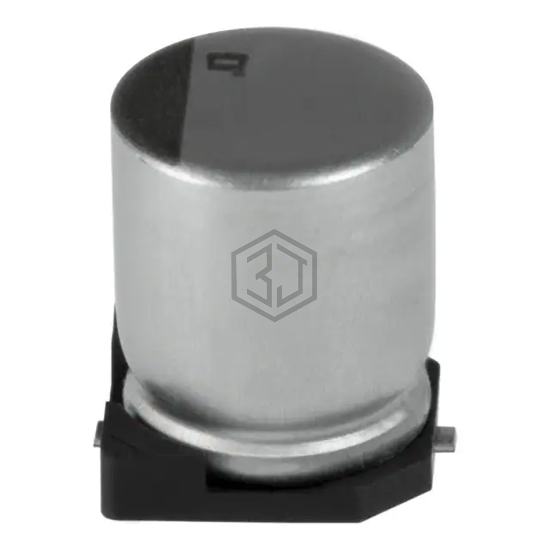

EMVY500ADA470MF80G is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 47UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 5,627
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 68 mA @ 120 Hz |
| Ripple Current @ High Frequency | 170 mA @ 100 kHz |
| Impedance | 600 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.303" (7.70mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AHA476M35E16T-F | Cornell Dubilier Knowles | CAP ALUM 47UF 20% 35V SMD | 80% | View |
| 35SGV47M8X6.5 | Rubycon | CAP ALUM 47UF 20% 35V SMD | 77% | View |
| UWZ1E470MCL1GS | Nichicon | CAP ALUM 47UF 20% 25V SMD | 65% | View |
| EEE-FN2A470UV | Panasonic Electronic Components | CAP ALUM 47UF 20% 100V SMD | 60% | View |
| UT476M016HEHTA | Aillen | CAP. ALUM 47UF 16V 20% SMD | 60% | View |
| EEE-FK1C470AP | Panasonic Electronic Components | CAP ALUM 47UF 20% 16V SMD | 51% | View |
Submit your RFQ for EMVY500ADA470MF80G and get a quote within 24 hours.
