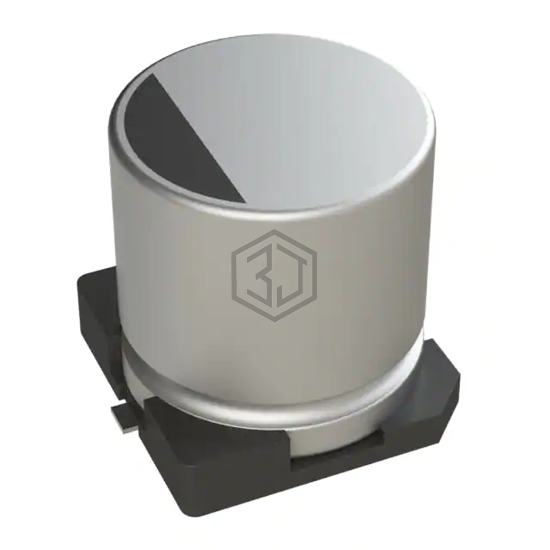

CAP ALUM 47UF 20% 35V SMD
35SGV47M8X6.5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 47UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 4,575
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.256" (6.50mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCL1V470MCL1GS | Nichicon | CAP ALUM 47UF 20% 35V SMD | 100% | View |
| EXV476M025S9GAA | KEMET | CAP ALUM 47UF 20% 25V SMD | 78% | View |
| UWZ1E470MCL1GS | Nichicon | CAP ALUM 47UF 20% 25V SMD | 78% | View |
| EMVY500ADA470MF80G | United Chemi-Con | CAP ALUM 47UF 20% 50V SMD | 77% | View |
| EEE-FN2A470UV | Panasonic Electronic Components | CAP ALUM 47UF 20% 100V SMD | 56% | View |
| UT476M016HEHTA | Aillen | CAP. ALUM 47UF 16V 20% SMD | 56% | View |
