CAP ALUM 47UF 20% 50V SMD

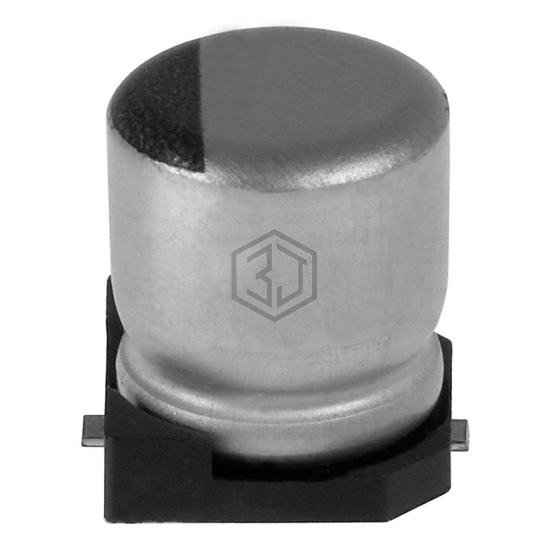

EMVL500ADA470MHA0G is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 47UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 9,447
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 92 mA @ 120 Hz |
| Ripple Current @ High Frequency | 99.36 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.406" (10.30mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UUA1V470MNL1GS | Nichicon | CAP ALUM 47UF 20% 35V SMD | 81% | View |
| EDH476M025S9HAA | KEMET | CAP ALUM 47UF 20% 25V SMD | 75% | View |
| EMVH250ADA470MF80G | United Chemi-Con | CAP ALUM 47UF 20% 25V SMD | 74% | View |
| 16SZV47M6.3X5.5 | Rubycon | CAP ALUM 47UF 20% 16V SMD | 69% | View |
| EDH476M016S9GAA | KEMET | CAP ALUM 47UF 20% 16V SMD | 69% | View |
| EEV476M6R3S9BAA | KEMET | CAP ALUM 47UF 20% 6.3V SMD | 68% | View |
Submit your RFQ for EMVL500ADA470MHA0G and get a quote within 24 hours.
