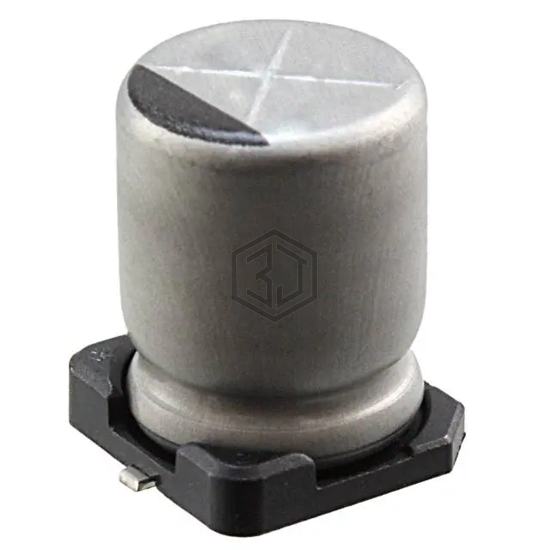

CAP ALUM 47UF 20% 35V SMD
UUA1V470MNL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 47UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 1,331
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 92 mA @ 120 Hz |
| Ripple Current @ High Frequency | 138 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-FN1V390UR | Panasonic Electronic Components | CAP ALUM 39UF 20% 35V SMD | 86% | View |
| EEE-FK1H390SL | Panasonic Electronic Components | CAP ALUM 39UF 20% 50V SMD | 74% | View |
| EEE-FN1H390UV | Panasonic Electronic Components | CAP ALUM 39UF 20% 50V SMD | 74% | View |
| UWD1E470MCL1GS | Nichicon | CAP ALUM 47UF 20% 25V SMD | 72% | View |
| ATB476M035 | Cornell Dubilier / Illinois Capacitor | CAP ALUM 47UF 20% 35V SMD | 65% | View |
| EEV476M6R3S9BAA | KEMET | CAP ALUM 47UF 20% 6.3V SMD | 60% | View |
Submit your RFQ for UUA1V470MNL1GS and get a quote within 24 hours.
