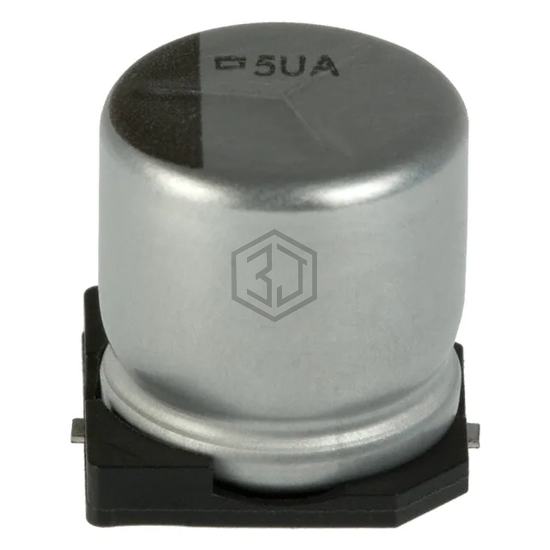

CAP ALUM 330UF 20% 25V SMD
EMVK250ADA331MJA0G is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 330UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 4,559
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 450 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
EMVK250ADA331MJA0G is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| VZH331M1ETR-0810CS | SURGE | CAP ALUM 330UF 20% 25V SMD | 100% | View |
| EMZT250ARA331MF80G | Chemi-Con | CAP ALUM 330UF 20% 25V SMD | 87% | View |
| UUJ1V331MNJ1MS | Nichicon | CAP ALUM 330UF 20% 35V SMD | 79% | View |
| ATB337M035H135 | Cornell Dubilier Knowles | CAP ALUM 330UF 20% 35V SMD | 78% | View |
| EEV-TG1H331Q | Panasonic Electronic Components | CAP ALUM 330UF 20% 50V SMD | 67% | View |
| EDH337M6R3A9MAA | KEMET | CAP ALUM 330UF 20% 6.3V SMD | 57% | View |
Submit your RFQ for EMVK250ADA331MJA0G and get a quote within 24 hours.
