Panasonic Electronic Components
CAP ALUM 330UF 20% 50V SMD

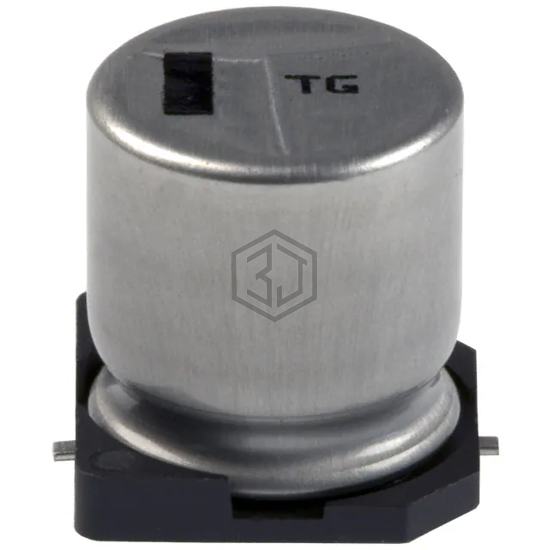

EEV-TG1H331Q is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 330UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 3,170
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 230mOhm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 390 mA @ 120 Hz |
| Ripple Current @ High Frequency | 600 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.531" (13.50mm) |
| Surface Mount Land Size | 0.531" L x 0.531" W (13.50mm x 13.50mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-TK1H331AQ | Panasonic Electronic Components | CAP ALUM 330UF 20% 50V SMD | 97% | View |
| UUH1H331MNQ1ZD | Nichicon | CAP ALUM 330UF 20% 50V SMD | 96% | View |
| EEE-TK1V331AQ | Panasonic Electronic Components | CAP ALUM 330UF 20% 35V SMD | 72% | View |
| EEE-TK1K331AM | Panasonic Electronic Components | CAP ALUM 330UF 20% 80V SMD | 70% | View |
| EEE-TP1E331AV | Panasonic Electronic Components | CAP ALUM 330UF 20% 25V SMD | 70% | View |
| EEE-TC1C331UV | Panasonic Electronic Components | CAP ALUM 330UF 20% 16V SMD | 61% | View |
Submit your RFQ for EEV-TG1H331Q and get a quote within 24 hours.
