CAP ALUM 100UF 20% 25V SMD

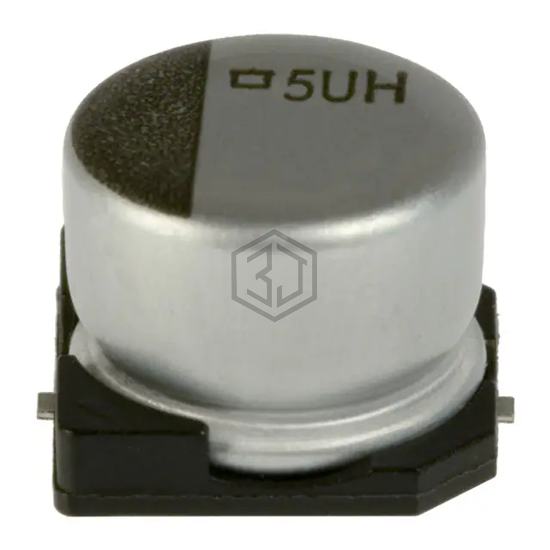

EMVH250ADA101MHA0G is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 100UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 1,402
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 400mOhm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 204.6 mA @ 120 Hz |
| Ripple Current @ High Frequency | 220 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL214097602E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 20% 25V SMD | 84% | View |
| VUJ101M1ETR-0810S | SURGE | CAP ALUM 100UF 20% 25V SMD | 77% | View |
| EEE-TPC101XAV | Panasonic Electronic Components | CAP ALUM 100UF 20% 16V SMD | 73% | View |
| UCJ1C101MCL1GS | Nichicon | CAP ALUM 100UF 20% 16V SMD | 72% | View |
| EMHB350ADA101MJA0G | United Chemi-Con | CAP ALUM 100UF 20% 35V SMD | 70% | View |
| EEE-TC1V101P | Panasonic Electronic Components | CAP ALUM 100UF 20% 35V SMD | 69% | View |
Submit your RFQ for EMVH250ADA101MHA0G and get a quote within 24 hours.
