Panasonic Electronic Components
CAP ALUM 100UF 20% 16V SMD

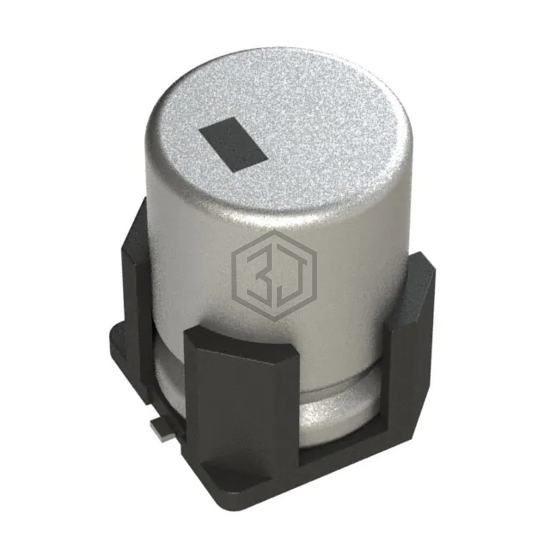

EEE-TPC101XAV is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 100UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 3,304
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 450mOhm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive, High Temperature Reflow |
| Ripple Current @ Low Frequency | 128.05 mA @ 120 Hz |
| Ripple Current @ High Frequency | 197 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.327" (8.30mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCJ1C101MCL1GS | Nichicon | CAP ALUM 100UF 20% 16V SMD | 94% | View |
| AEH0810101M016R | KYOCERA AVX | ALUMINUM CAP | 88% | View |
| MAL214097602E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 20% 25V SMD | 81% | View |
| EMVH250ADA101MHA0G | United Chemi-Con | CAP ALUM 100UF 20% 25V SMD | 73% | View |
| EDT107M050A9PAA | KEMET | CAP ALUM 100UF 20% 50V SMD | 73% | View |
| UWH1C101MCL1GS | Nichicon | CAP ALUM 100UF 20% 16V SMD | 68% | View |
Submit your RFQ for EEE-TPC101XAV and get a quote within 24 hours.
