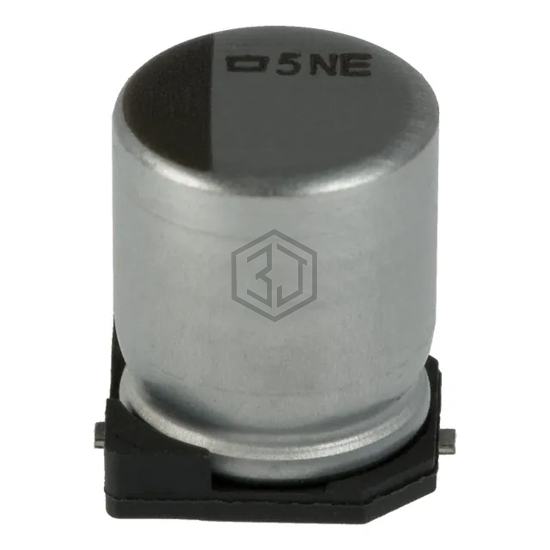

CAP ALUM 220UF 20% 6.3V SMD
EMVE6R3ADA221MF80G is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 220UF 20% 6.3V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can - SMD.
In Stock: 9,614
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 120 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.303" (7.70mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCQ1A221MCL1GS | Nichicon | CAP ALUM 220UF 20% 10V SMD | 81% | View |
| UWD1A221MCL1GS | Nichicon | CAP ALUM 220UF 20% 10V SMD | 76% | View |
| UWT0G221MCL6GS | Nichicon | CAP ALUM 220UF 20% 4V SMD | 72% | View |
| EEE-TK1E221UP | Panasonic Electronic Components | CAP ALUM 220UF 20% 25V SMD | 69% | View |
| UWH1C221MCL1GS | Nichicon | CAP ALUM 220UF 20% 16V SMD | 66% | View |
| EEV227M010S9HAA | KEMET | CAP ALUM 220UF 20% 10V SMD | 65% | View |
Submit your RFQ for EMVE6R3ADA221MF80G and get a quote within 24 hours.
