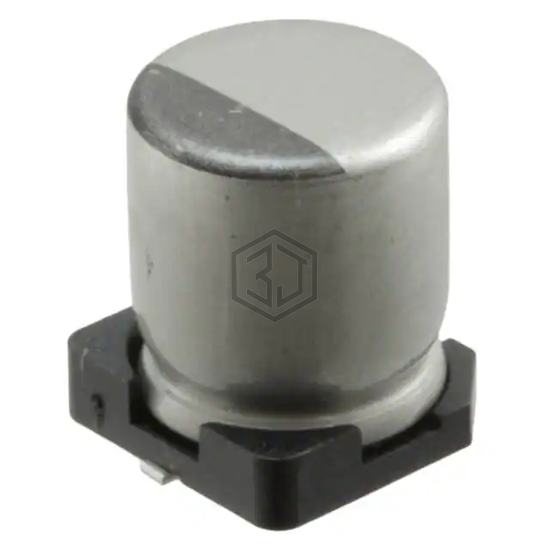

CAP ALUM 220UF 20% 10V SMD
UWD1A221MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 220UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 8,669
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 140 mA @ 120 Hz |
| Ripple Current @ High Frequency | 280 mA @ 100 kHz |
| Impedance | 340 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEV227M010S9HAA | KEMET | CAP ALUM 220UF 20% 10V SMD | 93% | View |
| UCQ1A221MCL1GS | Nichicon | CAP ALUM 220UF 20% 10V SMD | 86% | View |
| 865060145006 | Würth Elektronik | CAP ALUM 220UF 20% 6.3V SMD | 82% | View |
| EEE-FK1C221XV | Panasonic Electronic Components | CAP ALUM 220UF 20% 16V SMD | 76% | View |
| CED0J221MCB6358 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 72% | View |
| 227SMH016M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 220UF 20% 16V SMD | 71% | View |
Submit your RFQ for UWD1A221MCL1GS and get a quote within 24 hours.
