CAP ALUM 22UF 20% 10V SMD

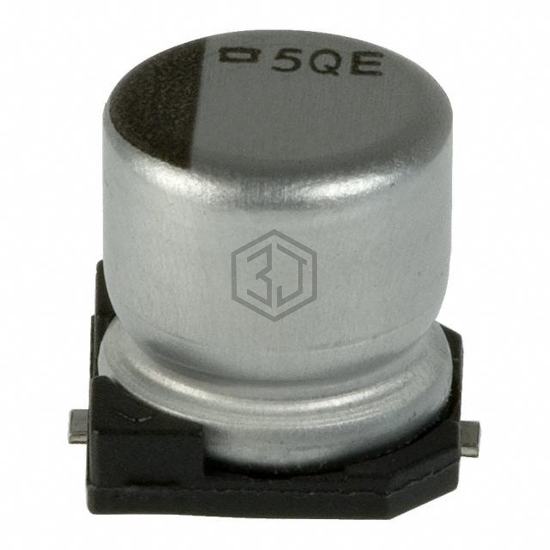

EMVE100ADA220ME55G is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 22UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 8,301
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 30 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.205" (5.20mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UUA1A220MCL1GS | Nichicon | CAP ALUM 22UF 20% 10V SMD | 100% | View |
| UUP1A220MCL1GS | Nichicon | CAP ALUM 22UF 20% 10V SMD | 97% | View |
| 226SMH6R3M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 22UF 20% 6.3V SMD | 80% | View |
| UT226M016HDHTA | Aillen | CAP. ALUM 22UF 16V 20% SMD | 78% | View |
| EEE-HB1V220P | Panasonic Electronic Components | CAP ALUM 22UF 20% 35V SMD | 52% | View |
| 35JZV22M5X6.1 | Rubycon | CAP ALUM 22UF 20% 35V SMD | 52% | View |
Submit your RFQ for EMVE100ADA220ME55G and get a quote within 24 hours.
