CAP ALUM 22UF 20% 10V SMD

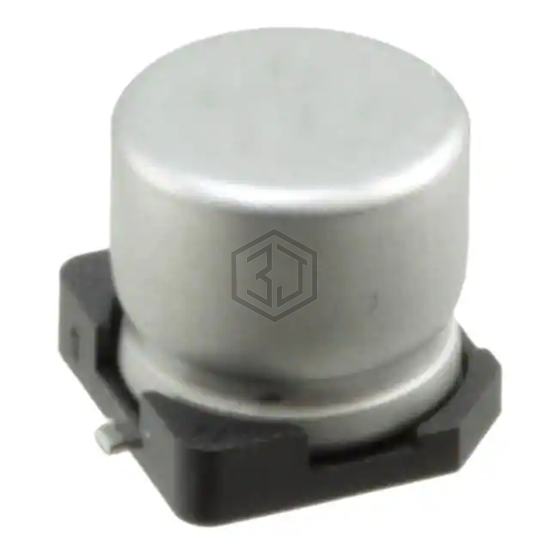

UUP1A220MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 2,266
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Bi-Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 33 mA @ 120 Hz |
| Ripple Current @ High Frequency | 49.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UUA1A220MCL1GS | Nichicon | CAP ALUM 22UF 20% 10V SMD | 95% | View |
| 226SMH6R3M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 22UF 20% 6.3V SMD | 80% | View |
| UT226M016HDHTA | Aillen | CAP. ALUM 22UF 16V 20% SMD | 75% | View |
| AFC226M06B12B-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 22UF 20% 6.3V SMD | 74% | View |
| VEJ220M1HTR-0606S | Surge | CAP ALUM 50V POLAR | 74% | View |
| 865080140001 | Würth Elektronik | CAP ALUM 22UF 20% 6.3V SMD | 67% | View |
Submit your RFQ for UUP1A220MCL1GS and get a quote within 24 hours.
