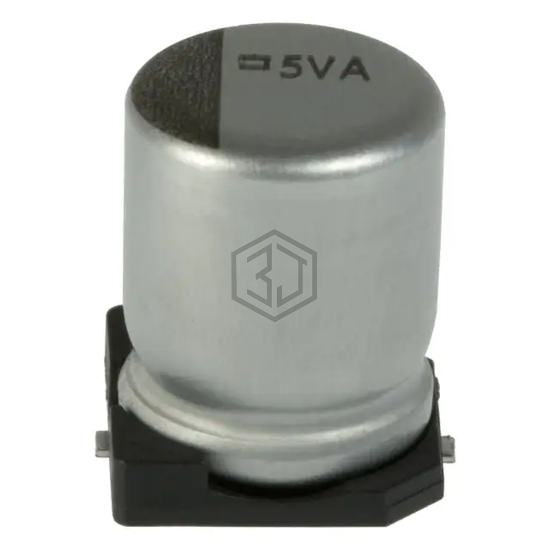

CAP ALUM 33UF 20% 63V SMD
EMVA630ADA330MHA0G is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 33UF 20% 63V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 63 V, package / case Radial, Can - SMD.
In Stock: 3,653
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 110 mA @ 120 Hz |
| Ripple Current @ High Frequency | 118.8 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEV-FK1H330P | Panasonic Electronic Components | CAP ALUM 33UF 20% 50V SMD | 74% | View |
| EDH336M100S9PAA | KEMET | CAP ALUM 33UF 20% 100V SMD | 68% | View |
| UWD1V330MCL1GS | Nichicon | CAP ALUM 33UF 20% 35V SMD | 65% | View |
| 336SML035M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 33UF 20% 35V SMD | 65% | View |
| 865230545004 | Würth Elektronik | CAP ALUM 33UF 20% 35V SMD | 59% | View |
| EMVL350ADA330MF80G | United Chemi-Con | CAP ALUM 33UF 20% 35V SMD | 51% | View |
Submit your RFQ for EMVA630ADA330MHA0G and get a quote within 24 hours.
