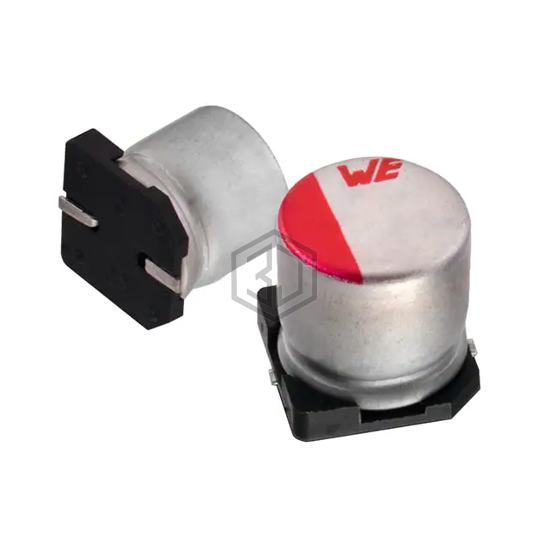

CAP ALUM 33UF 20% 35V SMD
865230545004 is a Aluminum Electrolytic Capacitors manufactured by Würth Elektronik. CAP ALUM 33UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 5,220
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 57 mA @ 120 Hz |
| Ripple Current @ High Frequency | 85.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.303" (7.70mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UWT1V330MCR1GB | Nichicon | CAP ALUM 33UF 20% 35V SMD | 98% | View |
| EMVL350ADA330MF80G | United Chemi-Con | CAP ALUM 33UF 20% 35V SMD | 92% | View |
| UWD1V330MCL1GS | Nichicon | CAP ALUM 33UF 20% 35V SMD | 59% | View |
| 10SLV33M5X6.1 | Rubycon | CAP ALUM 33UF 20% 10V SMD | 56% | View |
| EMVE100ADA330ME55G | United Chemi-Con | CAP ALUM 33UF 20% 10V SMD | 55% | View |
| 865080645010 | Würth Elektronik | CAP ALUM 33UF 20% 50V SMD | 52% | View |
