CAP ALUM 47UF 20% 35V SMD

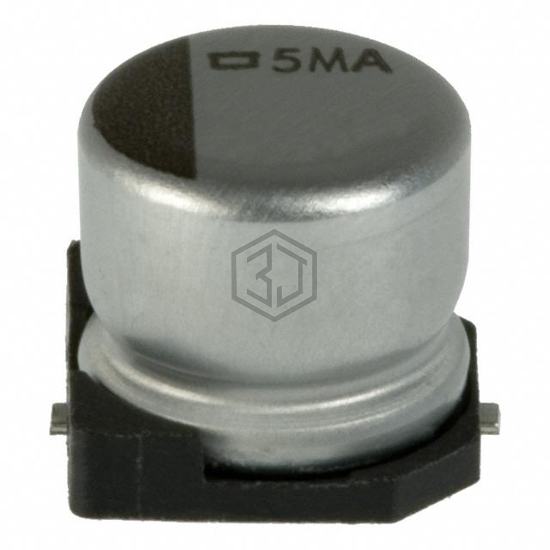

EMVA350ADA470MF60G is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 47UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 7,771
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 64 mA @ 120 Hz |
| Ripple Current @ High Frequency | 69.12 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.224" (5.70mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 16SGV47M6.3X6.1 | Rubycon | CAP ALUM 47UF 20% 16V SMD | 67% | View |
| 50TZV47M6.3X8 | Rubycon | CAP ALUM 47UF 20% 50V SMD | 64% | View |
| 35JZV47M6.3X8 | Rubycon | CAP ALUM 47UF 20% 35V SMD | 64% | View |
| 865230142003 | Würth Elektronik | CAP ALUM 47UF 20% 6.3V SMD | 59% | View |
| MAL214097801E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% 63V SMD | 57% | View |
| UZR0G470MCR1GB | Nichicon | CAP ALUM | 55% | View |
Submit your RFQ for EMVA350ADA470MF60G and get a quote within 24 hours.
