CAP ALUM 47UF 20% 6.3V SMD

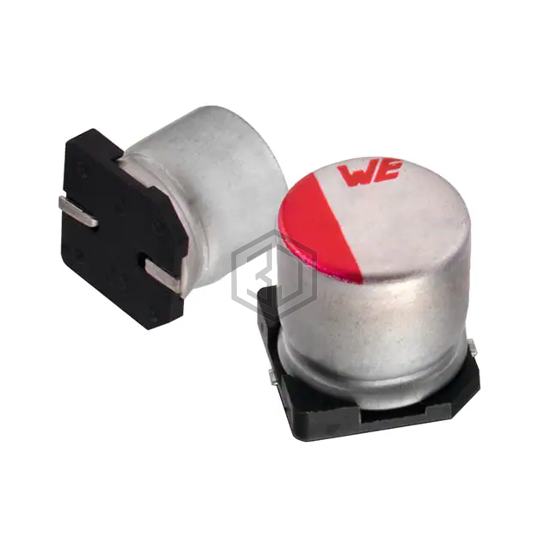

865230142003 is a Aluminum Electrolytic Capacitors manufactured by Würth Elektronik. CAP ALUM 47UF 20% 6.3V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can - SMD.
In Stock: 3,781
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 36 mA @ 120 Hz |
| Ripple Current @ High Frequency | 54 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.217" (5.50mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MVKBP6.3VC47RMF60TP | United Chemi-Con | CAP ALUM 47UF 20% 6.3V SMD | 97% | View |
| AVGA476M06C12T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 47UF 20% 6.3V SMD | 94% | View |
| EEE-HB0G470R | Panasonic Electronic Components | CAP ALUM 47UF 20% 4V SMD | 83% | View |
| CTB1C470MCB6358 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 65% | View |
| UUB1V470MNL1GS | Nichicon | CAP ALUM 47UF 20% 35V SMD | 61% | View |
| EEE-TG1J470UP | Panasonic Electronic Components | CAP ALUM 47UF 20% 63V SMD | 50% | View |
Submit your RFQ for 865230142003 and get a quote within 24 hours.
