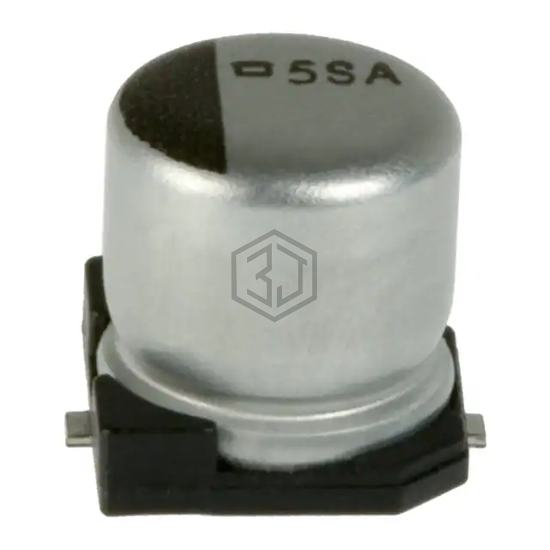

CAP ALUM 47UF 20% 16V SMD
EMVA160ADA470ME55G is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 47UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 5,044
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 44 mA @ 120 Hz |
| Ripple Current @ High Frequency | 47.52 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.205" (5.20mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UUQ1A470MCL1GB | Nichicon | CAP ALUM 47UF 20% 10V SMD | 79% | View |
| UUA1A470MCL1GS | Nichicon | CAP ALUM 47UF 20% 10V SMD | 72% | View |
| 476SVL6R3MDW | Cornell Dubilier / Illinois Capacitor | CAP ALUM 47UF 20% 6.3V SMD | 71% | View |
| UWT1E470MCL1GB | Nichicon | CAP ALUM 47UF 20% 25V SMD | 59% | View |
| 35SGV47M6.3X6.1 | Rubycon | CAP ALUM 47UF 20% 35V SMD | 56% | View |
| 6.3TZV47M4X6.1 | Rubycon | CAP ALUM 47UF 20% 6.3V SMD | 54% | View |
Submit your RFQ for EMVA160ADA470ME55G and get a quote within 24 hours.
