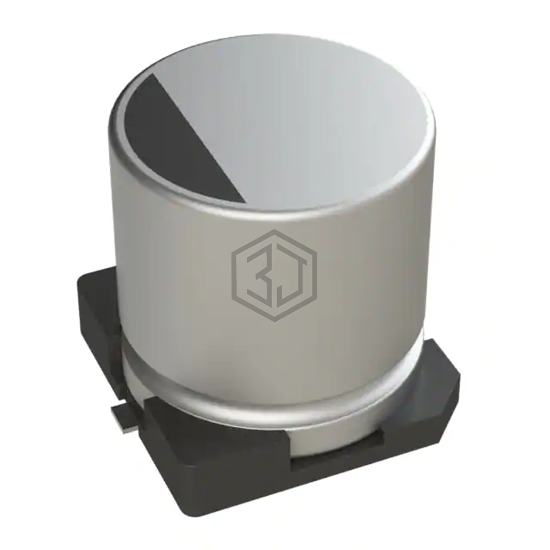

CAP ALUM 47UF 20% 35V SMD
35SGV47M6.3X6.1 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 47UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 4,281
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 865060543005 | Würth Elektronik | CAP ALUM 47UF 20% 35V SMD | 100% | View |
| UCD1V470MCQ1GS | Nichicon | CAP ALUM 35V POLAR | 100% | View |
| VEU470M1VTR-0810S | Surge | CAP ALUM 35V POLAR | 100% | View |
| UWT1E470MCL1GB | Nichicon | CAP ALUM 47UF 20% 25V SMD | 78% | View |
| UCM1E470MCL1GS | Nichicon | CAP ALUM 47UF 20% 25V SMD | 78% | View |
| 6.3TZV47M4X6.1 | Rubycon | CAP ALUM 47UF 20% 6.3V SMD | 56% | View |
Submit your RFQ for 35SGV47M6.3X6.1 and get a quote within 24 hours.
