CAP ALUM 4.7UF 20% 400V SMD

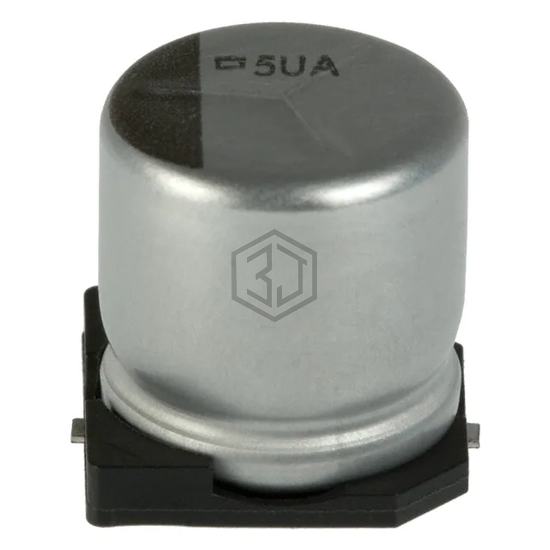

EMKB401ADA4R7MJA0G is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 4.7UF 20% 400V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - SMD.
In Stock: 2,905
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4.7 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | 10Ohm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 39 mA @ 120 Hz |
| Ripple Current @ High Frequency | 58.5 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AEH10104R7M250R | KYOCERA AVX | ALUMINUM CAP | 85% | View |
| UUX2D4R7MNL1GS | Nichicon | CAP ALUM 4.7UF 20% 200V SMD | 76% | View |
| AVEZ475M35B12T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 4.7UF 20% 35V SMD | 70% | View |
| UWG1H4R7MCL1GB | Nichicon | CAP ALUM 4.7UF 20% 50V SMD | 65% | View |
| EMZA350ADA4R7MD61G | United Chemi-Con | CAP ALUM 4.7UF 20% 35V SMD | 64% | View |
| AFK475M35B12T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 4.7UF 20% 35V SMD | 55% | View |
Submit your RFQ for EMKB401ADA4R7MJA0G and get a quote within 24 hours.
