Cornell Dubilier Electronics (CDE)

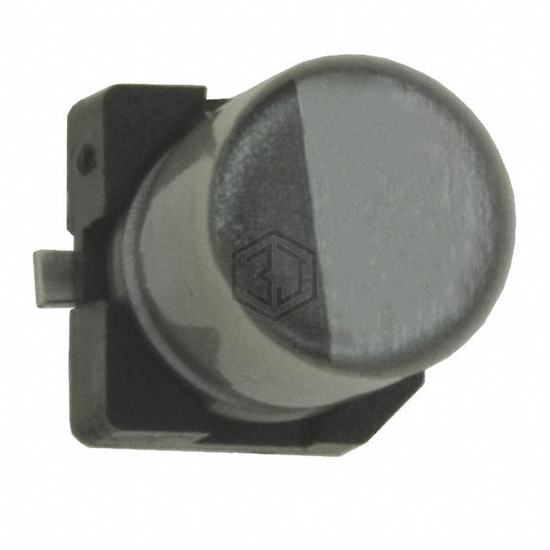

CAP ALUM 4.7UF 20% 35V SMD
AVEZ475M35B12T-F is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 4.7UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 8,858
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4.7 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 52 mA @ 120 Hz |
| Ripple Current @ High Frequency | 65 mA @ 100 kHz |
| Impedance | 3.2 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.217" (5.50mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EMZA350ADA4R7MD61G | United Chemi-Con | CAP ALUM 4.7UF 20% 35V SMD | 82% | View |
| EMVY350ADA4R7MD55G | United Chemi-Con | CAP ALUM 4.7UF 20% 35V SMD | 79% | View |
| AFK475M35B12T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 4.7UF 20% 35V SMD | 77% | View |
| UUD1H4R7MCL1GS | Nichicon | CAP ALUM 4.7UF 20% 50V SMD | 71% | View |
| UWG1H4R7MCL1GB | Nichicon | CAP ALUM 4.7UF 20% 50V SMD | 69% | View |
| UUA1H4R7MCL1GS | Nichicon | CAP ALUM 4.7UF 20% 50V SMD | 52% | View |
