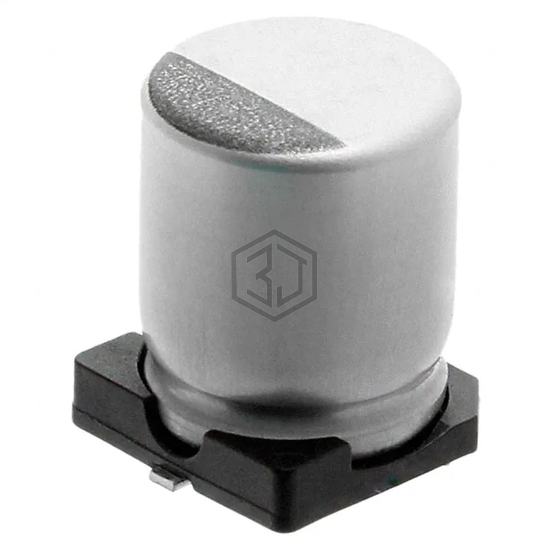

CAP ALUM 100UF 20% 35V SMD
EMHK350ADA101MF80G is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 100UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 1,033
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 300mOhm @ 400kHz |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 96 mA @ 120 Hz |
| Ripple Current @ High Frequency | 240 mA @ 400 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EDT107M035A9MAA | KEMET | CAP ALUM 100UF 20% 35V SMD | 87% | View |
| 35THV100M8X10.5 | Rubycon | CAP ALUM 100UF 20% 35V SMD | 84% | View |
| EEE-TP1V101AV | Panasonic Electronic Components | CAP ALUM 100UF 20% 35V SMD | 83% | View |
| UUE1E101MNS1GS | Nichicon | CAP ALUM 100UF 20% 25V SMD | 76% | View |
| EEE-TG1H101UP | Panasonic Electronic Components | CAP ALUM 100UF 20% 50V SMD | 71% | View |
| MAL214097102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 20% 50V SMD | 70% | View |
Submit your RFQ for EMHK350ADA101MF80G and get a quote within 24 hours.
